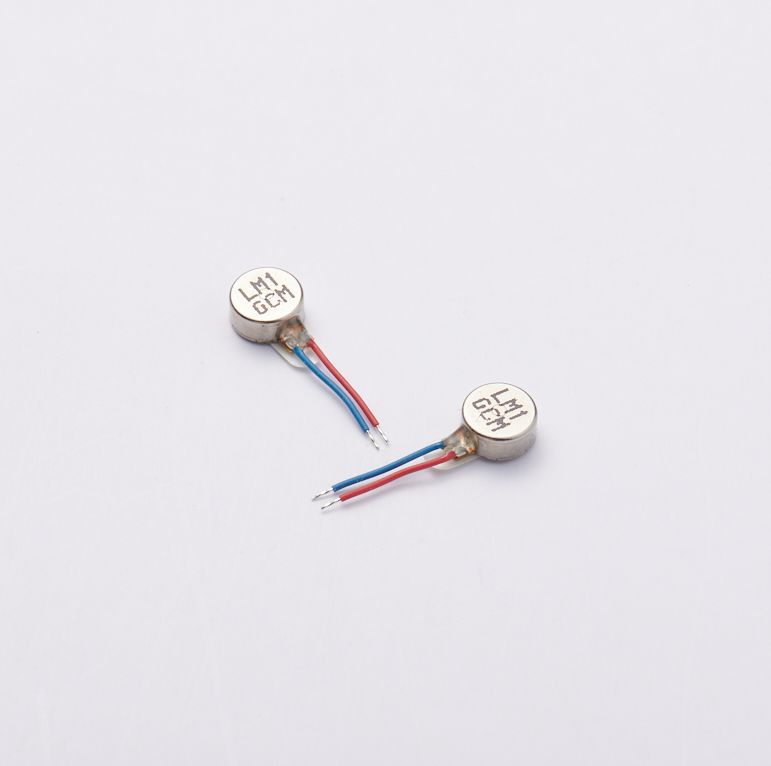

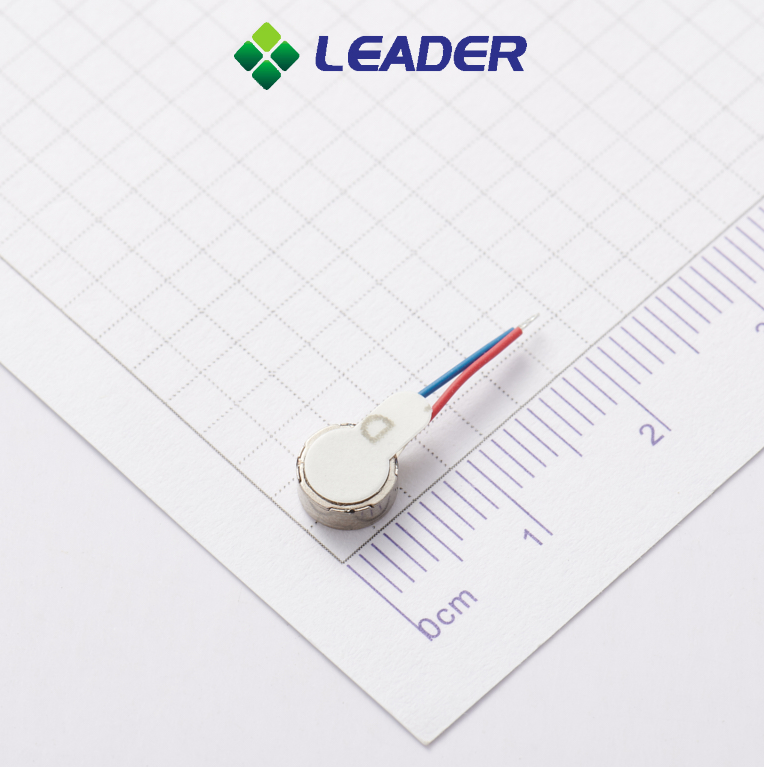

Dia 6mm*2.5mm Linear Vibration Motor | LRA Motor | LEADER LD0625
Main Features
Specification
| Diameter (mm): | 6.0 |
| Thickness (mm): | 2.5 |
| Rated Voltage (VAc): | 0.7 |
| Operating Voltage (Vdc): | 0.1~0.75V |
| Rated Current MAX (mA): | 90 |
| Rated Frequency (Hz): | 260±10 |
| Direction of vibration: | Z axis |
| Vibration Force (Grms): | 0.6 Min |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 8000 |
Application
The linear motor has some remarkable advantages: extremely high lifetime, adjustable vibrating force, fast response and low noise. It is widely used on electronic products that require haptic feedbacks such as high-end phones and smartwatches, VR glasses, game controllers.
Working with Us
FAQ For Linear Vibration Motor
Yes, a motor driver is required to operate the LRA vibration motor. The motor driver can also help to control the vibration intensity and protect the motor from overloading.
Answer: Yes, LEADER can offer customization options to accommodate specific design requirements and operating conditions.
Answer: Itr can be controlled using a variety of methods, including PWM signals, current control and voltage control.
Quality Control
We have 200% inspection before shipment and the company enforces quality management methods, SPC, 8D report for defective products. Our company has a strict quality control procedure, which mainly tests four contents as follow:
01. Performance Testing; 02. Waveform Testing; 03. Noise Testing; 04. Appearance Testing.
Company Profile
Established in 2007, Leader Micro Electronics (Huizhou) Co., Ltd. is a high-tech enterprise integrating R&D, production, and sales of micro vibration motors. Leader mainly manufactures coin motors, linear motors, brushless motors and cylindrical motors, covering an area of more than 20,000 square meters. And the annual capacity of micro motors is nearly 80 million. Since its founding, Leader has sold nearly a billion of vibration motors all over the world, which are widely used on about 100 kinds of products in different fields. The main applications conclude smartphones, wearable devices, electronic cigarettes and so on.
Reliability Test
Leader Micro has professional laboratories with a full set of testing equipment. The main reliability testing machines are as below:
01. Life Test; 02. Temperature & Humidity Test; 03. Vibration Test; 04. Roll Drop Test;05. Salt Spray Test; 06. Simulation Transport Test.
Packaging & Shipping
We support air freight, sea freight and express.The main express are DHL, FedEx, UPS, EMS, TNT etc. For the packaging: 100pcs motors in a plastic tray >> 10 plastic trays in a vacuum bag >> 10 vacuum bags in a carton.
Besides, we can provide free samples on request.
