factory low price Nema 42 Stepper Motor - Factory Cheap Hot 3v 1234 Coin Type Motor Vibration Vibrator Small Electric Vibrating Motors – Leader Microelectronics
factory low price Nema 42 Stepper Motor - Factory Cheap Hot 3v 1234 Coin Type Motor Vibration Vibrator Small Electric Vibrating Motors – Leader Microelectronics Detail:
We normally think and practice corresponding on the change of circumstance, and grow up. We aim at the achievement of a richer mind and body and also the living for Factory Cheap Hot 3v 1234 Coin Type Motor Vibration Vibrator Small Electric Vibrating Motors, Our experienced specialized group will be wholeheartedly at your support. We sincerely welcome you to check out our site and enterprise and send out us your inquiry.
We normally think and practice corresponding on the change of circumstance, and grow up. We aim at the achievement of a richer mind and body and also the living for 3v Coin Type Motor, Small Electric Vibrating Motors, Vibration Vibrator, Our aim is to help customers to make more profits and realize their goals. Through a lot of hard work, we establish a long-term business relationship with so many customers all around the world, and achieve win-win success. We will continue to do our best effort to service and satisfy you! Sincerely welcome you to join us!
SMD/SMT vibration motors are an excellent choice for fully automated, high-speed mass production utilizing pick and place machines. This is the only series of vibration motor available on tape and reel. If hand soldering the motor to the PCB ( i.e. making prototypes), do not use flux as this can enter the motor and cause it to fail. This series of motors cannot be washed after the reflow process.

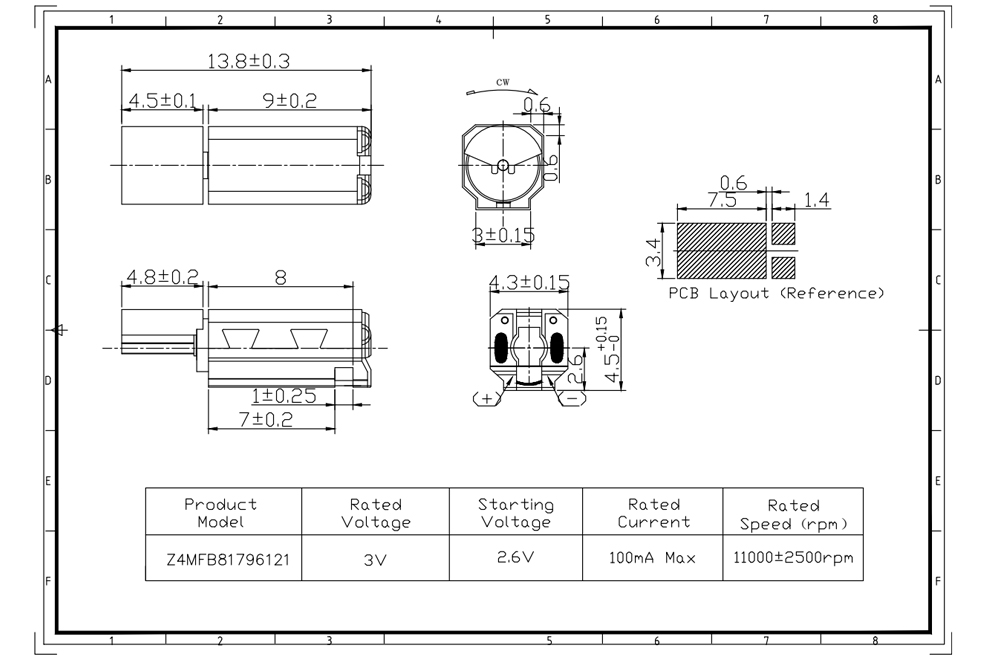

Product Technical Parameters of SMT Phone Vibrating motor：
| Place of Origin | Guangdong, China (Mainland) |
| Model Number | Z4MFB81796121 |
| Usage | Mobile phone, Watch and Band,Massagers,Medical apparatus and instruments |
| Certification | ISO9001，ISO14001，OHSAS18001 |
| Type | Micro Motor |
| Commutation | Brush |
| Feature | Vibration |
| Rated speed | 11000±2500rpm |
| Rated current | 100mA Max |
| Starting voltage | 2.6(V) DC Max |
| Rated Voltage | 3.0(V )DC |
| Operating voltage | 2.7~3.3(V )DC |
| Life | 2.5S on,2.5S off, 53,000 cycles |

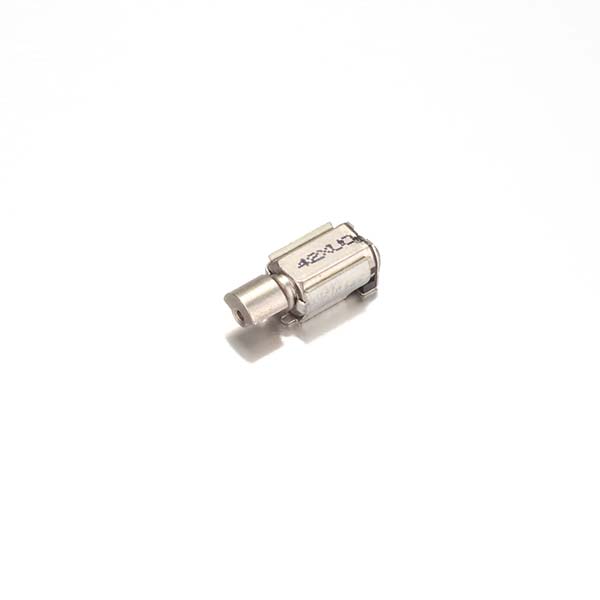

The main features of Mini SMD Vibrating motor :
These SMD, surface mount vibration motors are packaged on tape / reels of 1000 pieces per reel and are designed to be pick-and-placed directly from the reel.
They are an excellent choice for high volume mass production.
They have a “core” which allows them to withstand the high temperatures associated with the reflow soldering process.
Counterweight can be changed or customized to achieve different vibration force.
Main Export Markets of Our Mini Vibrating Motor:
South Asia: 43%
North America: 27%
Western Europe: 25%
Northern Europe: 5%
The application of Mini High temperature Vibrating motor :
Packaging & Shippment:
1. 50 mini dc drive motors in each PS tray.
2. Every 20 capsules as a group, put a plastic cover on the group and wrap it in tape.
3. Put the wrapped group into a inbox.
4. Every 8 inboxes are put into an outer case by the ways standard as the drawing.
5. Quantity and batch number are written on the surface of the outer case.

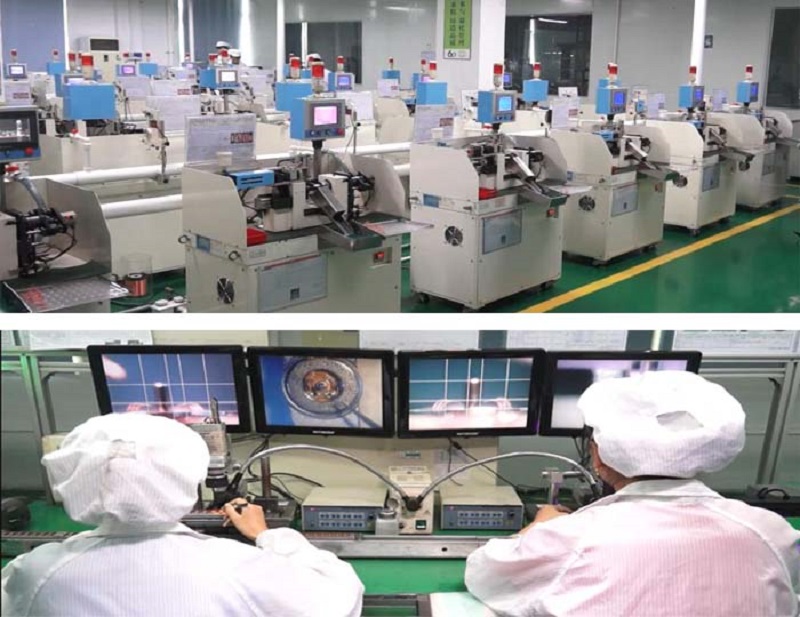

Inspection Instrument:
Certificate:
Product detail pictures:
Related Product Guide:
How to Maintain and Repair the Vibrating Motor
URAS Vibrating Motors
With reliable quality process, good reputation and perfect customer service, the series of products produced by our company are exported to many countries and regions for factory low price Nema 42 Stepper Motor - Factory Cheap Hot 3v 1234 Coin Type Motor Vibration Vibrator Small Electric Vibrating Motors – Leader Microelectronics , The product will supply to all over the world, such as: The Swiss , Luxemburg , Bangladesh , Many years of work experience, we have now realized the importance of providing good quality products and solutions and the best before-sales and after-sales services. Most problems between suppliers and clients are due to poor communication. Culturally, suppliers can be reluctant to question things they do not understand. We break down those barriers to ensure you get what you want to the level you expect, when you want it. faster delivery time and the product you want is our Criterion .
Quality Control
We have 200% inspection before shipment and the company enforces quality management methods, SPC, 8D report for defective products. Our company has a strict quality control procedure, which mainly tests four contents as follow:
01. Performance Testing; 02. Waveform Testing; 03. Noise Testing; 04. Appearance Testing.

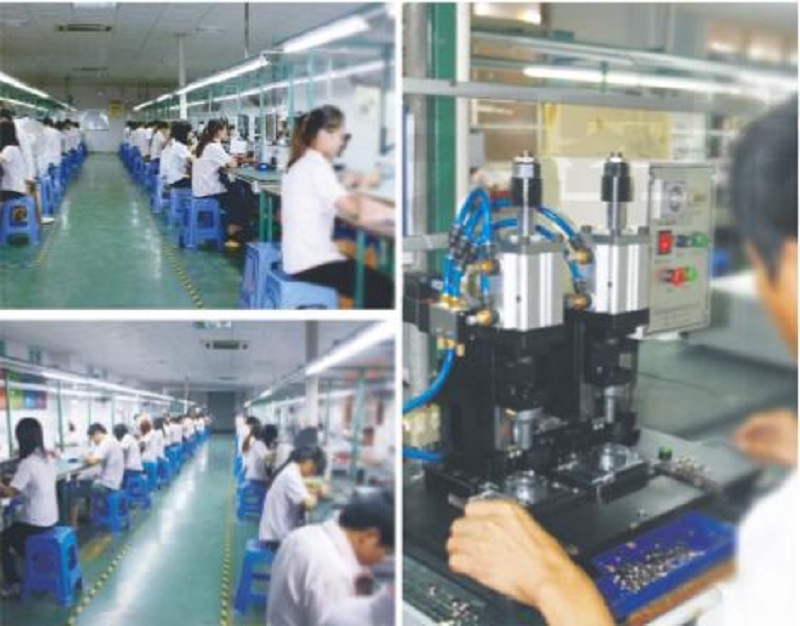

Company Profile
Established in 2007, Leader Micro Electronics (Huizhou) Co., Ltd. is a high-tech enterprise integrating R&D, production, and sales of micro vibration motors. Leader mainly manufactures coin motors, linear motors, brushless motors and cylindrical motors, covering an area of more than 20,000 square meters. And the annual capacity of micro motors is nearly 80 million. Since its founding, Leader has sold nearly a billion of vibration motors all over the world, which are widely used on about 100 kinds of products in different fields. The main applications conclude smartphones, wearable devices, electronic cigarettes and so on.
Reliability Test
Leader Micro has professional laboratories with a full set of testing equipment. The main reliability testing machines are as below:
01. Life Test; 02. Temperature & Humidity Test; 03. Vibration Test; 04. Roll Drop Test;05. Salt Spray Test; 06. Simulation Transport Test.
Packaging & Shipping
We support air freight, sea freight and express.The main express are DHL, FedEx, UPS, EMS, TNT etc. For the packaging: 100pcs motors in a plastic tray >> 10 plastic trays in a vacuum bag >> 10 vacuum bags in a carton.
Besides, we can provide free samples on request.
