Vibration Motor For Thermostats: LD0832

https://www.leader-w.com/vibration-motor-for-thermostats/

Thermostats were first used in industrial production to control the temperature of machines, equipment and production lines to ensure the stability and efficiency of the production process.

With the advancement of technology, thermostats are gradually entering the domestic and commercial sectors, becoming an integral part of the modern smart home. The thermostat has a vibration motor installed inside, which can realize the tactile vibration of the thermostat panel.

Write your message here and send it to us

What We Produce

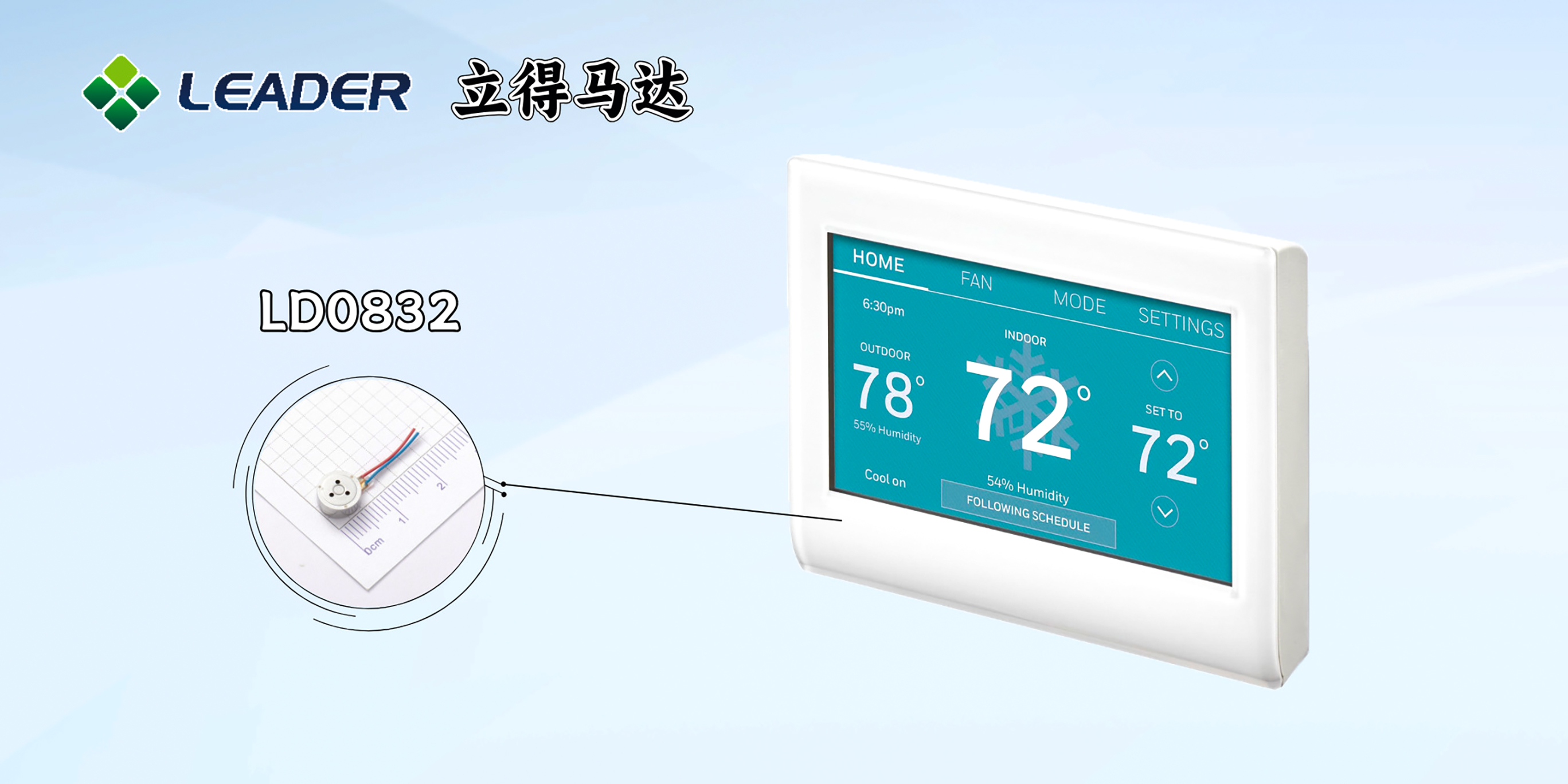

According to the thermostat market demand, LEADER has developed the LRA motor of LD0832:

1- This motor is compact and small: With a thickness of 3.2mm and a diameter of only 8mm, it can be more flexibly installed inside the thermostat. At the same time will not take up too much space, which is conducive to maintaining the compactness and aesthetics of the thermostat.

2- Higher durability and reliability: LEADER presents this motor with stable performance, the internal material adopts high-precision spring structure, and the life span can be more than 800H.

3- The power consumption of this motor is extremely low: The voltage of the motor is 1.8V, and the motor power is only 0.1W. Such low power consumption extends the service life of the thermostat.

4- Fast response:The linear 0832 vibration motor has rapid tactile vibration feedback. This motor can do 20ms startup time, giving customers rapid feedback.

Model

LD0832

Motor Type

LRA

Size (mm)

Φ8*T3.25

Vibration Direction

Z Axis

Vibration Force (G)

1.2-1.7

Voltage Range (V)

0.1-1.8

Rated Voltage (V)

1.8(AC)

Current (mA)

≤80

Speed / Frequency

235±10 HZ

Life (Hour)

833

Write your message here and send it to us

The Role of the Vibrating Motor in the Thermostatsr:

The basic principle of a thermostat is to monitor and regulate the temperature of the room to achieve automatic control of the temperature. In thermostats, vibration motors play a vital role. The following is a detailed analysis of the role of motors in thermostats:

1. Too high or too low temperature warning:

When the thermostat detects that the ambient temperature exceeds or falls below the preset safety range, the vibrating motor will start quickly. By means of vibration to alert the user's attention, and take measures to adjust the indoor temperature, so as to avoid potential harm or loss.

2. Device Failure Alarm:

If a thermostat has an internal failure that causes the temperature control function to fail, the vibration motor will also sound an alarm to prevent further deterioration of the failure. For some advanced thermostats, the vibration motor also serves as a reminder of regular maintenance or calibration. With a preset vibration period, the vibration motor reminds the user when maintenance or calibration is due.
